Chart

Plotting charts in pyfastexcel requires multiple configurations. To ensure the accuracy of these configurations and validate the argument values, the chart functionality is implemented using pydantic models. In this section, we will introduce each chart's pydantic model and explain how to use them to plot charts in pyfastexcel.

Example

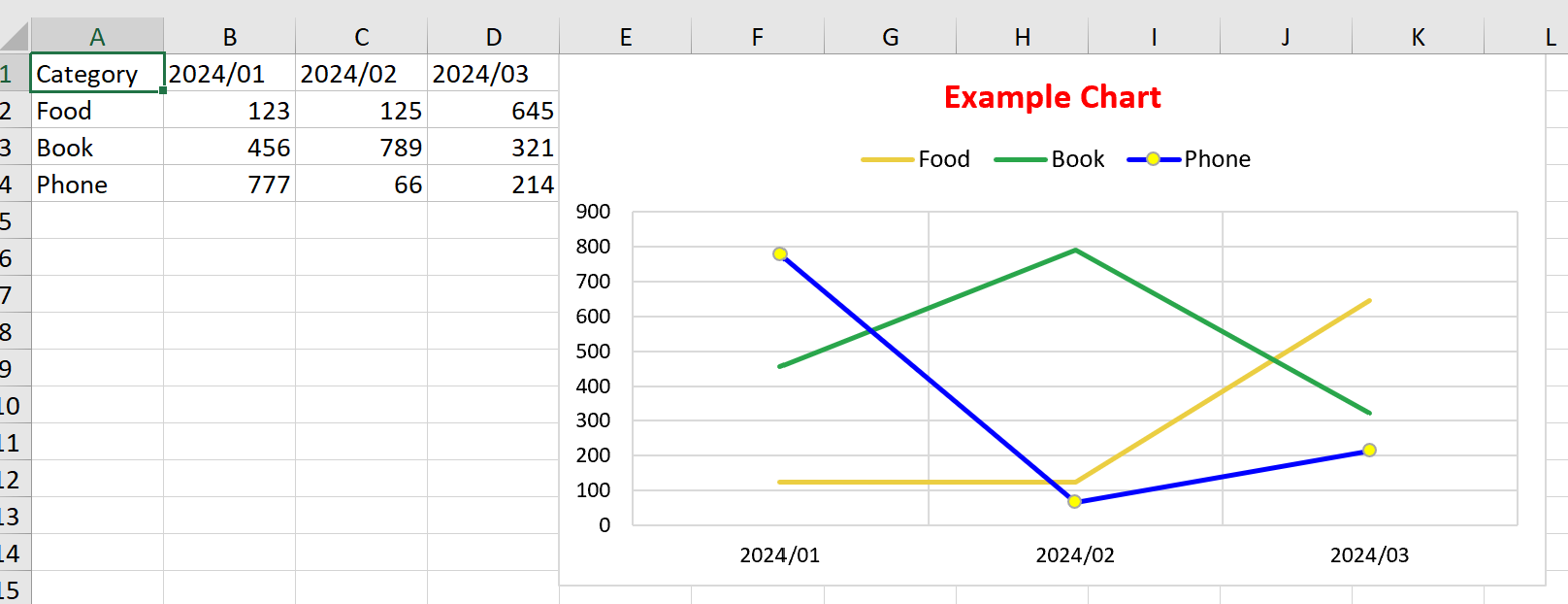

LineChart

from pyfastexcel import Workbook
from pyfastexcel.chart import (
    Chart,
    ChartSeries,
    RichTextRun,
    Font,
    ChartAxis,
    ChartLegend,
    Fill,
    Marker,
)

wb = Workbook()
ws = wb['Sheet1']

ws[0] = ['Category', '2024/01', '2024/02', '2024/03']
ws[1] = ['Food', 123, 125, 645]
ws[2] = ['Book', 456, 789, 321]
ws[3] = ['Phone', 777, 66, 214]

chart = Chart(
    chart_type='line',
    series=[
        ChartSeries(
            name='Sheet1!A2',
            categories='Sheet1!B1:D1',
            values='Sheet1!B2:D2',
            fill=Fill(ftype='pattern', pattern=1, color='ebce42'),
            marker=Marker(symbol='none'),
        ),
        ChartSeries(
            name='Sheet1!A3',
            categories='Sheet1!B1:D1',
            values='Sheet1!B3:D3',
            fill=Fill(ftype='pattern', pattern=1, color='29a64b'),
            marker=Marker(symbol='none'),
        ),
        ChartSeries(
            name='Sheet1!A4',
            categories='Sheet1!B1:D1',
            values='Sheet1!B4:D4',
            fill=Fill(ftype='pattern', pattern=1, color='0000FF'),
            marker=Marker(
                symbol='circle',
                fill=Fill(ftype='pattern', pattern=1, color='FFFF00'),
            ),
        ),
    ],
    title=[RichTextRun(text='Example Chart', font=Font(color='FF0000', bold=True))],
    x_axis=ChartAxis(major_grid_lines=True, font=Font(color='000000')),
    y_axis=ChartAxis(major_grid_lines=True, font=Font(color='000000')),
    legend=ChartLegend(position='top', show_legend_key=True),
)
ws.add_chart('E1', chart)

Column Chart

from pyfastexcel import Workbook
from pyfastexcel.chart import (
    Chart,
    ChartSeries,
    RichTextRun,
    Font,
    ChartAxis,
    ChartLegend,
    Fill,
    Marker,
)

wb = Workbook()
ws = wb['Sheet1']

ws[0] = ['Category', '2024/01', '2024/02', '2024/03']
ws[1] = ['Food', 123, 125, 645]
ws[2] = ['Book', 456, 789, 321]
ws[3] = ['Phone', 777, 66, 214]

chart = Chart(
    chart_type='col',
    series=[
        ChartSeries(
            name='Sheet1!A2',
            categories='Sheet1!B1:D1',
            values='Sheet1!B2:D2',
            fill=Fill(ftype='pattern', pattern=1, color='ebce42'),
        ),
        ChartSeries(
            name='Sheet1!A3',
            categories='Sheet1!B1:D1',
            values='Sheet1!B3:D3',
            fill=Fill(ftype='pattern', pattern=1, color='29a64b'),
        ),
        ChartSeries(
            name='Sheet1!A4',
            categories='Sheet1!B1:D1',
            values='Sheet1!B4:D4',
            fill=Fill(ftype='pattern', pattern=1, color='0000FF'),
        ),
    ],
    title=[RichTextRun(text='Example Chart', font=Font(color='FF0000', bold=True))],
    x_axis=ChartAxis(major_grid_lines=True, font=Font(color='000000')),
    y_axis=ChartAxis(major_grid_lines=True, font=Font(color='000000')),
    legend=ChartLegend(position='top', show_legend_key=True),
)
ws.add_chart('E1', chart)

For those who prefer a more concise style, you can try to plot chart like the following code snippet.

Note

Not all attributes support the following style. For example, the title attribute. Check the default value of each attribute in the ChartModel and it's SubModel.

Code Snippet

from pyfastexcel import Workbook
from pyfastexcel.chart import (
    Chart,
    ChartSeries,
    RichTextRun,
    Font,
    ChartAxis,
    ChartLegend,
    Fill,
    Marker,
)

wb = Workbook()
ws = wb['Sheet1']

ws[0] = ['Category', '2024/01', '2024/02', '2024/03']
ws[1] = ['Food', 123, 125, 645]
ws[2] = ['Book', 456, 789, 321]
ws[3] = ['Phone', 777, 66, 214]

chart = Chart(chart_type='col')
chart.series = [
    ChartSeries(
        name='Sheet1!A2',
        categories='Sheet1!B1:D1',
        values='Sheet1!B2:D2',
        fill=Fill(ftype='pattern', pattern=1, color='ebce42'),
    ),
    ChartSeries(
        name='Sheet1!A3',
        categories='Sheet1!B1:D1',
        values='Sheet1!B3:D3',
        fill=Fill(ftype='pattern', pattern=1, color='29a64b'),
    ),
    ChartSeries(
        name='Sheet1!A4',
        categories='Sheet1!B1:D1',
        values='Sheet1!B4:D4',
        fill=Fill(ftype='pattern', pattern=1, color='0000FF'),
    ),
]
chart.title = [RichTextRun(text='Example Chart', font=Font(color='FF0000', bold=True))]
chart.x_axis.major_grid_lines = True
chart.x_axis.font.color = '000000'
chart.y_axis.major_grid_lines = True
chart.y_axis.font.color = '000000'
chart.legend.position = 'top'
chart.legend.show_legend_key = True

ws.add_chart('E1', chart)

Column Chart & Line Chart

from pyfastexcel import Workbook
from pyfastexcel.chart import (
    Chart,
    ChartSeries,
    RichTextRun,
    Font,
    ChartAxis,
    ChartLegend,
    Fill,
    Marker,
)

wb = Workbook()
ws = wb['Sheet1']

ws[0] = ['Category', '2024/01', '2024/02', '2024/03']
ws[1] = ['Food', 123, 125, 645]
ws[2] = ['Book', 456, 789, 321]
ws[3] = ['Phone', 777, 66, 214]

column_chart = Chart(
    chart_type='col',
    series=[
        ChartSeries(
            name='Sheet1!A2',
            categories='Sheet1!B1:D1',
            values='Sheet1!B2:D2',
            fill=Fill(ftype='pattern', pattern=1, color='ebce42'),
            marker=Marker(symbol='none'),
        ),
        ChartSeries(
            name='Sheet1!A3',
            categories='Sheet1!B1:D1',
            values='Sheet1!B3:D3',
            fill=Fill(ftype='pattern', pattern=1, color='29a64b'),
            marker=Marker(symbol='none'),
        ),
    ],
    legend=ChartLegend(position='top', show_legend_key=True),
)

# Another coding style to plot the chart
line_chart = Chart(chart_type='line')
line_chart.series = ChartSeries(
    name='Sheet1!A4',
    categories='Sheet1!B1:D1',
    values='Sheet1!B4:D4',
    fill=Fill(ftype='pattern', pattern=1, color='0000FF'),
    marker=Marker(
        symbol='circle',
        fill=Fill(ftype='pattern', pattern=1, color='FFFF00'),
    ),
)
line_chart.title = [RichTextRun(text='Example Chart', font=Font(color='FF0000', bold=True))]
line_chart.x_axis.major_grid_lines = True
line_chart.x_axis.font.color = '000000'
line_chart.y_axis.major_grid_lines = True
line_chart.y_axis.font.color = '000000'
line_chart.legend.position = 'top'
line_chart.legend.show_legend_key = True

ws.add_chart('E1', [column_chart, line_chart])

Chart

Defines the configuration for a chart.

Attribute	Type	Description
chart_type	str or ChartType	The type of chart, such as 'bar', 'line', etc.
series	List[ChartSeries] or ChartSeries	The data series to be plotted in the chart.
graph_format	Optional[GraphicOptions]	Graphical options for the chart.
title	Optional[List[RichTextRun]]	The title of the chart.
legend	Optional[ChartLegend]	The legend settings for the chart.
dimension	Optional[ChartDimension]	The dimensions of the chart.
vary_colors	Optional[bool]	Specifies if colors should vary by data point.
x_axis	Optional[ChartAxis]	The configuration of the X-axis.
y_axis	Optional[ChartAxis]	The configuration of the Y-axis.
plot_area	Optional[ChartPlotArea]	The configuration of the plot area.
fill	Optional[Fill]	The fill settings for the chart.
border	Optional[Line]	The border settings for the chart.
show_blanks_as	Optional[str]	Specifies how blanks should be shown in the chart.
bubble_size	Optional[int]	The size of bubbles in a bubble chart.
hole_size	Optional[int]	The size of the hole in a doughnut chart.
order	Optional[int]	The order of the series in the chart.

ChartSeries

Defines the series within a chart, including attributes like the series name, data categories, values, and various settings for visual customization such as line styles, markers, and data labels.

Attribute	Type	Description
name	str	The name of the series (Legend).
categories	str	The categories for the series (X value).
values	str	The values for the series (Y value).
sizes	Optional[str]	The sizes for bubble charts.
fill	Optional[Fill]	Fill settings for the series.
line	Optional[Line]	Line settings for the series.
marker	Optional[Marker]	Marker settings for the series.
data_label_position	Optional[str or ChartDataLabelPosition]	The position of data labels for the series.

ChartDimension

Specifies the dimensions (width and height) of the chart area.

Attribute	Type	Description
width	Optional[int]	The width of the chart.
height	Optional[int]	The height of the chart.

GraphicOptions

Contains settings for graphical objects, including accessibility features, locking options, scaling, and positioning.

Attribute	Type	Description
alt_text	Optional[str]	Alternative text for accessibility.
print_object	Optional[bool]	Indicates if the object should be printed.
locked	Optional[bool]	Specifies if the object is locked.
lock_aspect_ratio	Optional[bool]	Indicates if the aspect ratio should be locked.
auto_fit	Optional[bool]	Specifies if the object should automatically fit its content.
offset_x	Optional[int]	The horizontal offset of the object.
offset_y	Optional[int]	The vertical offset of the object.
scale_x	Optional[float]	The horizontal scale factor.
scale_y	Optional[float]	The vertical scale factor.
hyperlink	Optional[str]	A hyperlink associated with the object.
hyperlink_type	Optional[str]	The type of hyperlink.
positioning	Optional[str]	The positioning mode for the object.

ChartPlotArea

Describes the plot area of the chart, including options for displaying bubble sizes, category names, and other visual elements.

Attribute	Type	Description
second_plot_values	Optional[int]	The number of values in a secondary plot (only for pieOfPie and barOfPie chart).
show_bubble_size	Optional[bool]	Indicates if bubble sizes should be displayed.
show_cat_name	Optional[bool]	Specifies if category names should be shown.
show_leader_lines	Optional[bool]	Indicates if leader lines should be shown in the data label.
show_percent	Optional[bool]	Specifies if percentages should be shown in the data label.
show_ser_name	Optional[bool]	Indicates if series names should be displayed in the data label.
show_val	Optional[bool]	Specifies if values should be shown in the data label.
fill	Optional[Fill]	Fill settings for the plot area.
num_fmt	Optional[ChartCustomNumFmt]	Custom number format for the plot area.

ChartAxis

Configures the axes of the chart, including grid lines, tick labels, axis scaling, and formatting.

Attribute	Type	Description
none	Optional[bool]	Specifies if the axis should be hidden.
font	Optional[Font]	Font settings for the axis labels.
major_grid_lines	Optional[bool]	Specifies if major grid lines should be displayed.
minor_grid_lines	Optional[bool]	Specifies if minor grid lines should be displayed.
major_unit	Optional[float]	The interval between major grid lines.
tick_label_skip	Optional[int]	Specifies the number of tick labels to skip between each drawn label.
reverse_order	Optional[bool]	Indicates if the axis order should be reversed.
secondary	Optional[bool]	Specifies if this is a secondary axis.
maximum	Optional[float]	The maximum value for the axis.
minimum	Optional[float]	The minimum value for the axis.
log_base	Optional[float]	The logarithmic base for the axis scale.
num_fmt	Optional[ChartCustomNumFmt]	Custom number format for the axis.
title	Optional[List[RichTextRun]]	The title of the axis.

ChartCustomNumFmt

Provides custom number formatting options for chart elements.

Attribute	Type	Description
num_fmt	Optional[str]	The custom number format.
source_linked	Optional[bool]	Specifies if the format is linked to the source.

RichTextRun

Defines text content and its associated font settings within chart elements.

Attribute	Type	Description
text	str	The text content.
font	Optional[Font]	Font settings for the text.

ChartLegend

Specifies the legend's position and visibility of legend keys.

Attribute	Type	Description
position	Optional[Literal['none', 'top', 'bottom', 'left', 'right', 'top_right']]	The position of the legend.
show_legend_key	Optional[bool]	Specifies if the legend key should be shown.

Line

Details the styling of lines within the chart, including line type, smoothness, width, and marker visibility.

Attribute	Type	Description
ltype	Optional[str or ChartLineType]	The type of line.
smooth	Optional[bool]	Specifies if the line should be smoothed.
width	Optional[float]	The width of the line.
show_marker_line	Optional[bool]	Indicates if the line should be shown on markers.

Marker

Configures markers used in the chart, including their symbols, sizes, and fill options.

Attribute	Type	Description
fill	Optional[Fill]	Fill settings for the marker.
symbol	Optional[str or MarkerSymbol]	The symbol used for the marker.
size	Optional[int]	The size of the marker.

Fill

Defines the fill style for chart elements, including type (pattern or gradient), color, and shading.

Attribute	Type	Description
ftype	Optional[Literal['pattern', 'gradient']]	The type of fill, either 'pattern' or 'gradient'.
pattern	Optional[int]	The pattern index for fill (0 to 18).
color	Optional[str]	The fill color (supports hex color value).
shading	Optional[int]	The shading index for the fill (0 to 5).

Font

Specifies the font settings for text within the chart, including bold, color, size, and alignment.

Attribute	Type	Description
bold	Optional[bool]	Specifies if the text is bold.
color	Optional[str]	The color of the text.
family	Optional[str]	The font family for the text.
italic	Optional[bool]	Specifies if the text is italic.
size	Optional[float]	The font size for the text.
strike	Optional[bool]	Specifies if the text has a strikethrough.
underline	Optional[str]	The style of underline for the text.
vert_align	Optional[str]	Vertical alignment for the text.
